> Low-H2O heat exchanger is composed of round, seamless circulation tubes made of pure red copper, with pure aluminium fins and two brass collectors for left or right 1/2” same end connection. Automatic air vent 1/8” and drain plug 1/2” are included.
Pressure test: 20 bar
Working pressure: 10 bar
> Brackets: sendzimir, galvanised steel plate thickness 1 mm, dark grey lacquered RAL 7011, with a maximum intermediate distance of 1.05 m
> Front panel: electrolytic, galvanised steel plate of 1.25 mm thick
> Side panels: electrolytic, galvanised steel plate of 1.25 mm thick with hole for integrated Jaga valve, inclusive metalised cover plates for the un-used hole.
> Wall slat: electrolytic, galvanised steel plate of 1.25 mm thick

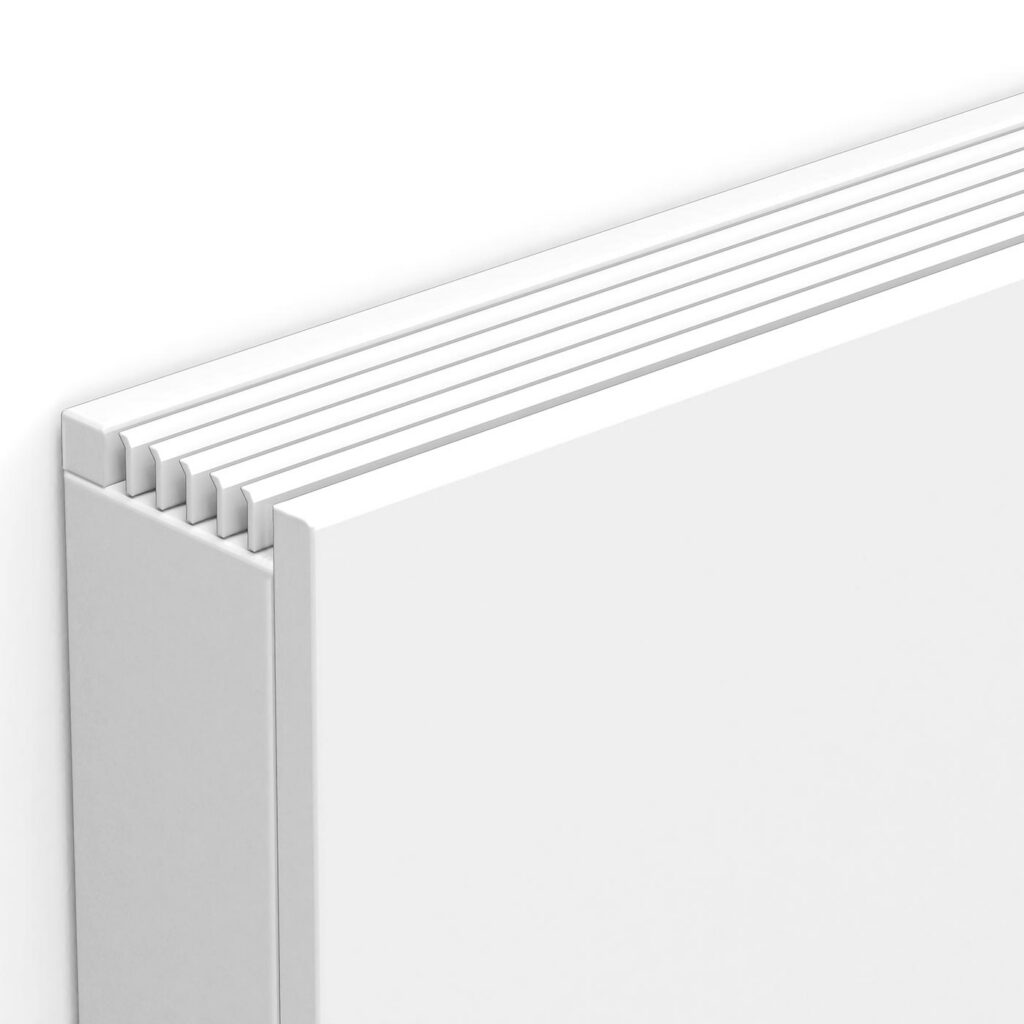

> Inversed aluminium top grille coated in the same colour as the casing.
> Strong and functional packaging, can be used as a protection cover during construction works.
Reduced energy consumption and maximum heat output by the ultra conductive Low-H2O heat exchanger
Suitable for installation of the decentralized Oxygen D-Flow ventilation system
Suitable for an integrated valve and concealed connectionJAGA ACO (D09)
