- Low-H2O heat exchanger is composed of round, seamless circulation tubes made of pure red copper, with pure aluminium fins and two brass collectors for left or right 1/2” same end connection. Air vent elbow (standard) or automatic air vent (twin) 1/8” and drain plug 1/2” are included.
Pressure test: 20 bar
Working pressure: 10 bar
- Brackets are included and made of sendzimir galvanised steel plate of 1 mm; supplied to be installed with a maximum intermediate distance of 1.05 m.
- The front panels: electrolytic, galvanised steel plates of 0.86 mm thick, double profiled in length. Supplied with small positioning holes and slots to assemble front panels to side panel with easy click system.
- Side panels: sendzimir, profiled galvanised steel plate of 1 mm thick

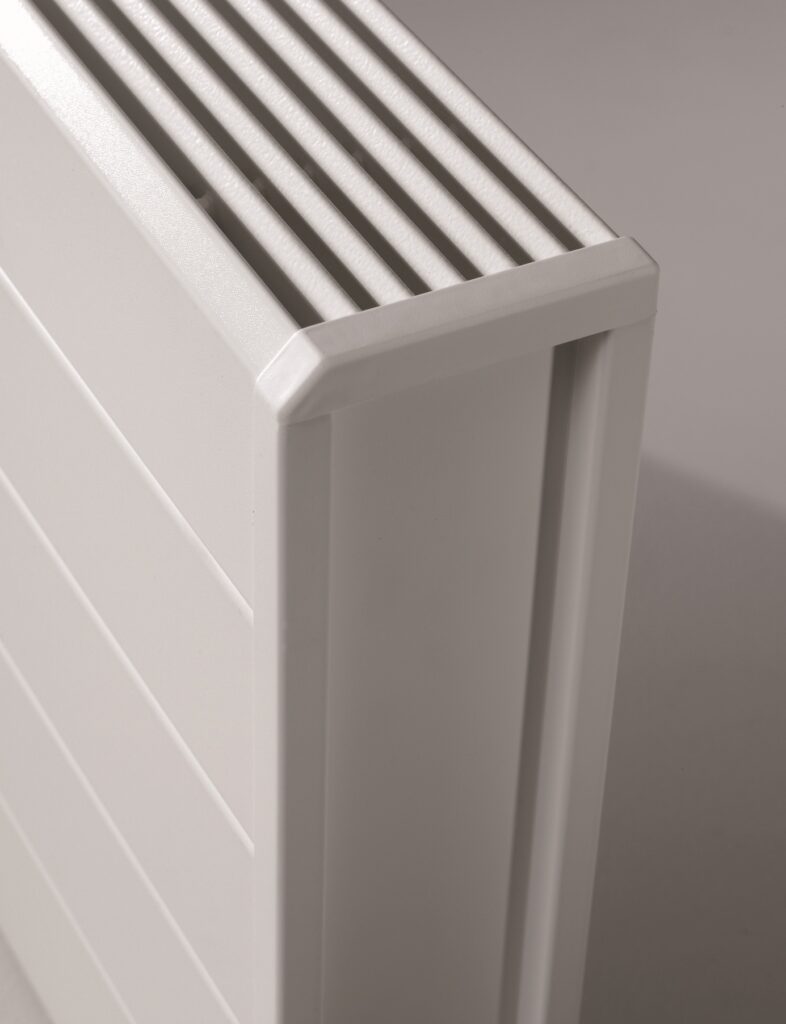

- The top grille: sendzimir, galvanised steel plate of 0.80 mm thick, profiled backwards angled steel plate with angled topside. At corners the grille is supplied with high standard synthetic angled corner pieces in same finish as casing.
- The free-standing model: front and back panels are identical, grille and side panels come adapted to this model. The feet are telescopically adjustable for placement on finished floor /concrete floor.
- Reduced energy consumption and maximum heat output by the ultra conductive Low-H2O heat exchanger
- Suitable for installation of the decentralized Oxygen D-Flow ventilation system
- Suitable for an integrated valve and concealed connection
